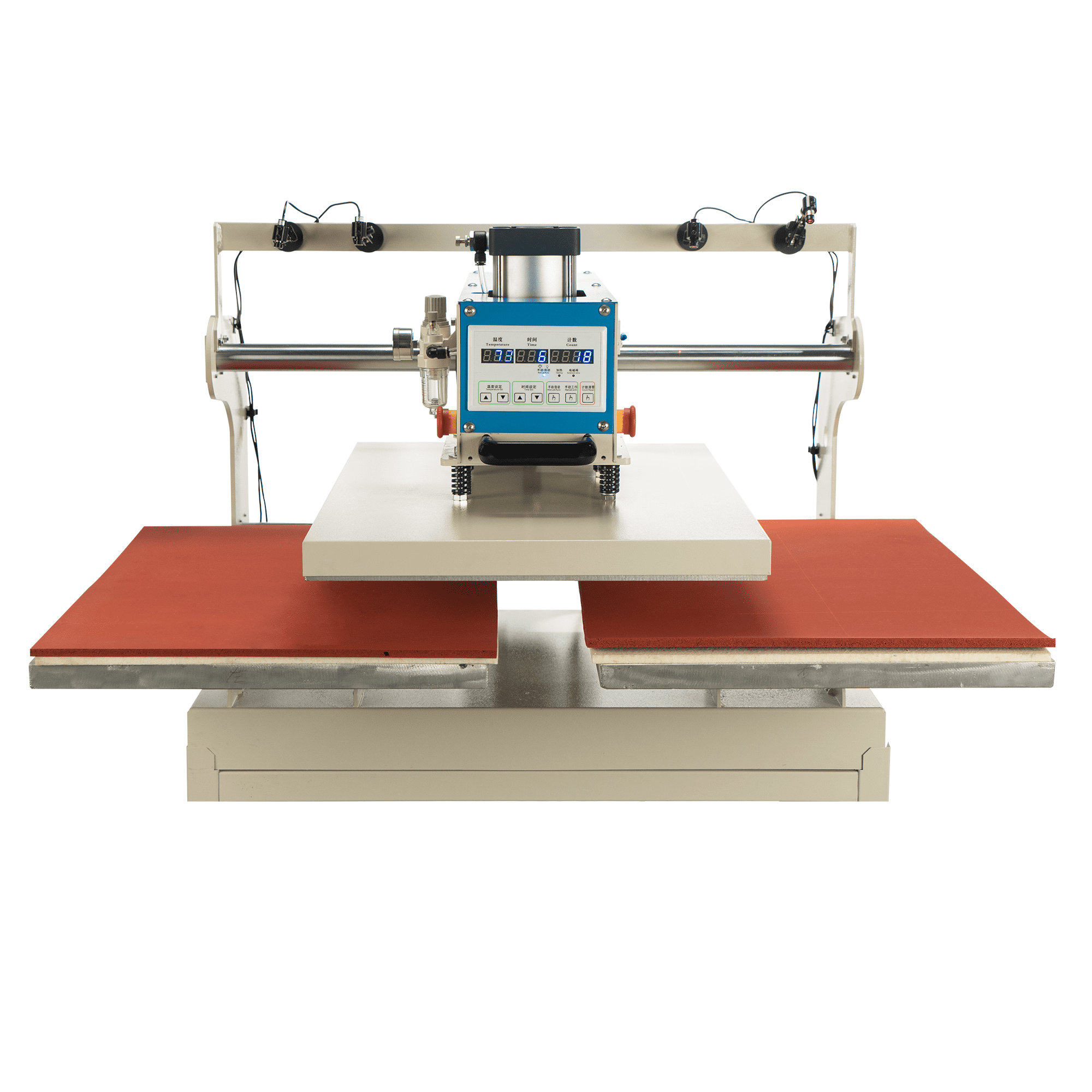

LIVIVOX 20 x 28 pneumatic up sliding dual platen heat press machine with infrared positioning

The LIVIVOX 20 x 28 pneumatic up sliding dual platen heat press machine with infrared positioning is a versatile and efficient tool for a variety of printing applications. Featuring a convenient pneumatic design, this heat press machine is easy to use and provides accurate results for small items like t-shirts. The machine is powered by an air compressor (not included) and has a sturdy base frame with a brake caster for stable and mobile printing. The lower aluminum plate with a separate stand makes it simple to set up finished clothes, ensuring a smooth and hassle-free printing experience.

• Features a full digital integrated display control for easy operation and monitoring
• Provides high accuracy of signal indication when the press process is completed
• Heating tube and heating plate are integrated into a whole part, ensuring short heating time, safety, durability, and even temperature distribution
• Pressure can be adjusted up to 0.8Mpa, with a stable and convenient sliding track for high efficiency
• Covered with a special high temperature cloth for hot stamping
• Lower plate is covered with a silicon mat and sponge for even heating pressure
• Automation print once the backside inductive screw is touched
• Left and right side bearings move the heat press machine in parallel
• Suitable for general pressure of 0.4Mpa-0.6Mpa heat printing
• Pneumatic heat press transfer mechanism makes the machine more convenient for printing
• Designed for accurate printing on small items like t-shirts
• Powered by an air compressor (not included)
• Lower aluminium plate with a separate stand for easy placement of finished clothes
• Stable printing and easy movement with the base frame and brake caster
• Equipped with 4 laser positioning points for precise alignment
• Big LCD display with temperature, time, and count settings
• Emergency stop button for urgent case stoppage
• Pressure adjusting knob for easy adjustment of different pressure
• Includes a right bottle for lubricating the air cylinder
• Comes with a hose for the air compressor
• Operates on 110V/60HZ with a power of 4.0kW
• Temperature range of 0-299°C and delaying time of 1-999s
• Gross weight of 306.5 lb and package size of 65.0" x 33.5" x 31.5"
• Accepts a maximum thickness of 2.36" for a wide range of applications including pure cotton, polyester, chemical fiber, pearl board, metal pendant, mousepad, vitrolite, and ceramics
• Heat plate size of 20" x 28" (50 x 70cm)
